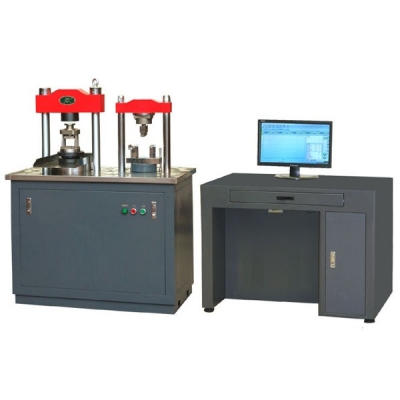

Automatic Cement Flexural and Compression Testing Machine

Features:

Model: YAW-B Hydaulic Servo testing machine

Max load:100/200/300KN

Load range 2%-100%FS

Load accuracy ≤±1%

Displacement resolution 0.005mm

Displacement error ≤±0.5%

Compression Test Space 200/180mm

Compress Plate size: 160mm

Power supply 3-phase,AC380V, 50Hz

This machine is mainly designed for testing the compression strength of cement and mortar.

It can fulfill the test automatically according to the requirements, which lists in the inspection

method for the strength of cement and mortar, also possess the below advantages, such as: realizing

screen display of test data and test curves.

It is ideal inspection equipment for factories, laboratory and education, etc.

Model	YAW-100B	YAW-200B	YAW-300B
Max. Load	100 KN	200 KN	300 KN
Test Class	1 Class
Test Measurement Range	4%~100%FS (12KN~300KN)
Load Accuracy	Better Than ±1%
Control Way	Computer Control Auto Loading Progress
Test Force Resolution	0.01 KN
Loading Rate	0.3KN/S~10KN/S
Loading Speed Error	±5%
Piston Stroke	80mm
Distance Between Upper And Lower Platen	180mm
Test Space Adjustment Method	Block Adjustment Test Space
Max. Distance Between Columns	190mm
Size Of Upper And Lower Platen	Ф120mm
