10-200KN Spring Tester
next
10-200KN Spring Tester
Features:

Max load: 10/20/30/50/100/200KN

Load range   2%-100%FS

Load accuracy    ≤±1%

Max. tensile test space    650mm

Max.Compression Test Space       600mm

Test plate size  100 mm

Power supply      3-phase,AC380V, 50Hz

  • Product Detail
  • Now Inquiry
  • Browse Other Products

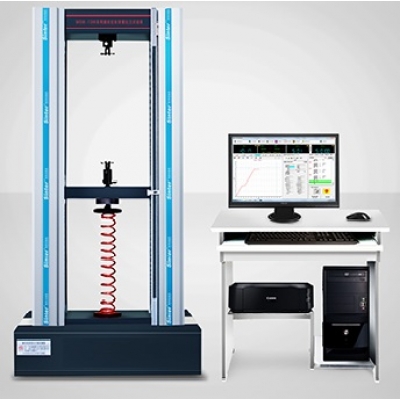

Automatic spring testing machine TLS-S heavy duty with maximum loads of 10, 20, 30,50,100KN is applied to the test helical, cylindrical, disc springs. They are equipped with test control system for creating and testing the electric system of rules for load application in automatic mode have a digital display for displaying the test input parameters and display intensities and deformation during the test.



Model

TLS-S10

TLS-S20

TLS-S30

TLS-S50

TLS-S100

Max load (KN)

10

20

30

50

100

Load accuracy

<± 1%

Load range

2%-100% FS

Max. tensile test space mm

650

Max.Compression Test Space mm

650

Test plate size, mm

100

Testing speed-mm/min

0.05-500

Test class

Class 0.5, class1

Voltage

220V, 50/60HZ
